S612 6 x 48 inch combination sander with base

Kalamazoo Industries S612 belt & disc combination sander features a 3HP 1PH or 3PH TEFC motor, v-belt driven, multi position 6″ x 48″ sanding head, 12″ disc, dual adjustable work tables with 5/8″ slots, quick belt change mechanism, multi position sanding belt head, access point to clean out base, accessible belt tracking knob, magnetic on/off controls removable and replaceable.

This heavy duty 6 x 48 inch combination belt and disc sander is a heavy duty unit designed to operate in various work environments and can accommodate any 6 x 48 inch belt and any 12 inch disc so you can achieve your desired outcome.

This industrial combination sander has full left and right movement which allows for easy corner shaping, beveling, deburring, flat work, descaling and angle work.

This combination sander is great for sanding and deburring, ferrous metal, non-ferrous metal, plastic and wood.

S612 6 x 48 inch combination sander with base specifications

  • 3HP 1PH 220 OR 3HP 3PH 220/440 volt TEFC motor.
  • Available with OR without integral vacuum base dust collector.
  • Magnetic switch with overload protection.
  • Built in 100 CFM dust collector base with cartridge filter on S612V vacuum base unit.
  • Quick change belt, pre-tensioned one lever belt change…FAST !!
  • Main Motor: 3PH FLA 230V 8 amps and 460v 4 amps.
  • Main Motor: 1PH FLA 115V 24 amps and 230V 12 amps.
  • Belt Sander multi-position horizontal/vertical

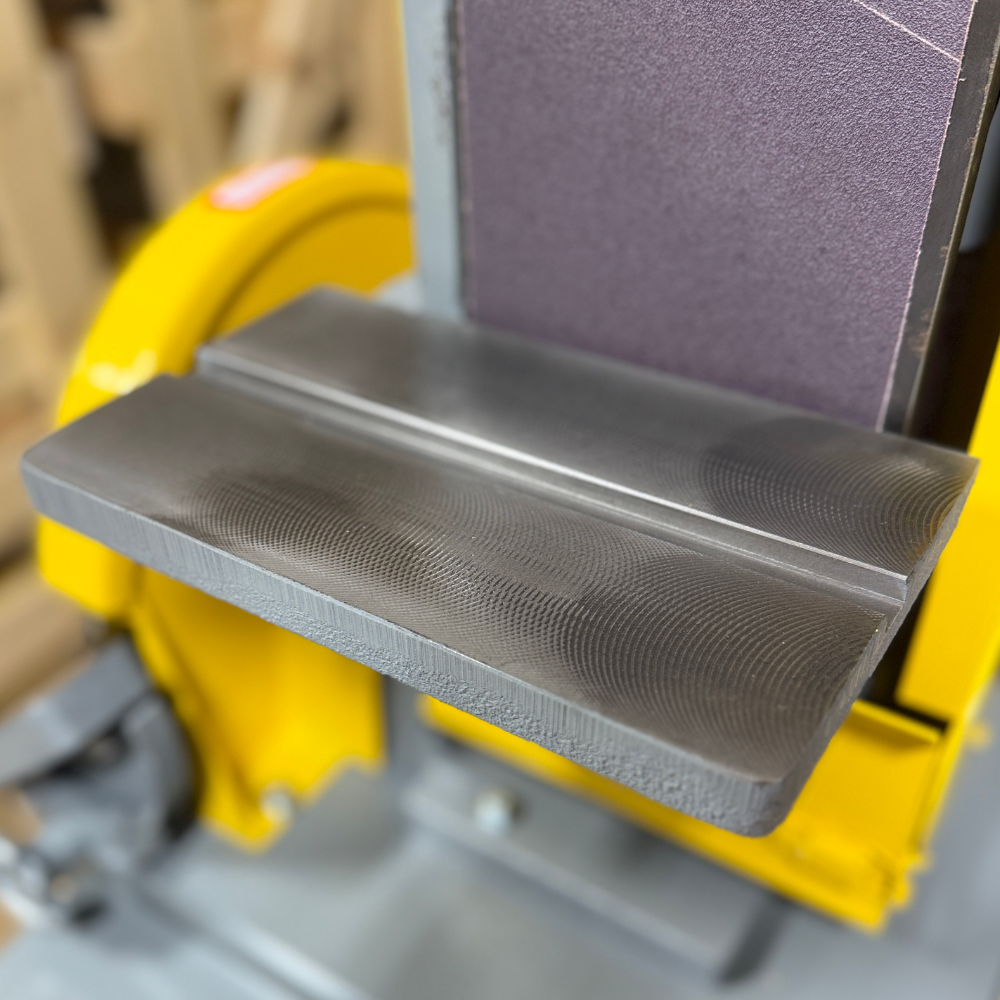

  • Belt sander cast iron work table-  6″ x 10″ with 5/8th slot

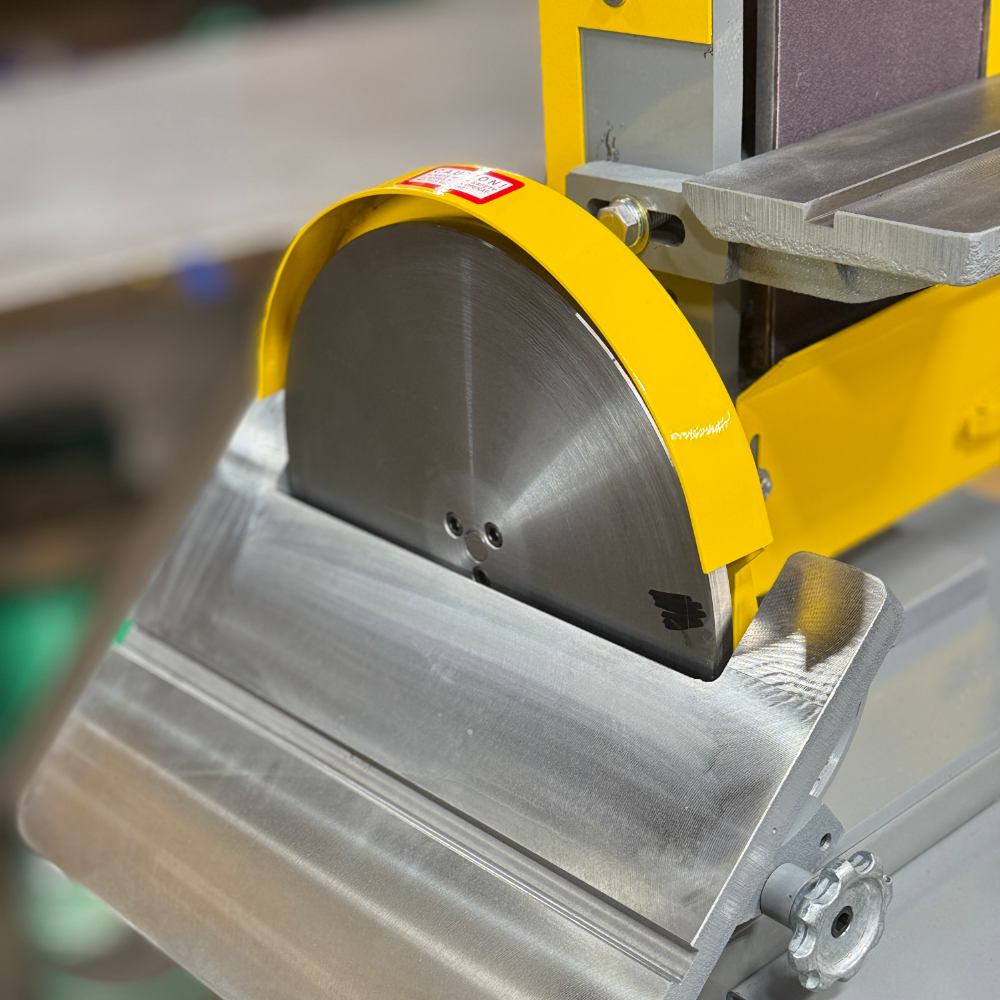

  • Disc- 12″ aluminum disc, 5/8″ arbor Speed- 2500 SFPM
  • Disc sander cast iron work table-  7.75″ x 16.5 inch with 5/8th slot
  • Reversible and replaceable 6-1/2″ x 14″ steel platen
  • Belt- 6 x 48 inch
  • Belt SFPM: 2800
  • Dimensions: L12″ x W14″ x H 60″
  • Shipping weight 380 lbs.
  • Shipping dimensions: L 31″ x W 43″ x H 63″
  • Made in USA !!!

This machine is great for but not limited to the following applications

  • Bevel an Deburr
  • Square and End
  • Round Flat Corners

Other Combination Sanders

Part replacement

All parts that Kalamazoo Industries manufacture’s for this S612 combination belt and disc sander are replaceable no matter the age of this unit and all parts are kept in stock.

Where this equipment can be used

S612 industrial combination belt and disc sander has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
