S8D 8 x 60 inch vertical dry belt sander unit is great for removing burr’s and descaling and industrial blade sharpening! This industrial S8D 8 x 60 inch dry belt sander is a powerful unit for production sanding and can handle all ferrous and non-ferrous metals quickly. This unit requires shop air to keep tension on the belt.

Kalamazoo Industries S8D 8 x 60 vertical dry belt sander is outfitted with powerful 7.5HP 3PH, 220V or 440V (specify voltage at time of order) motor.

S8D 8 x 60 inch belt sander specifications

  • 7-1/2HP, 3PH motor

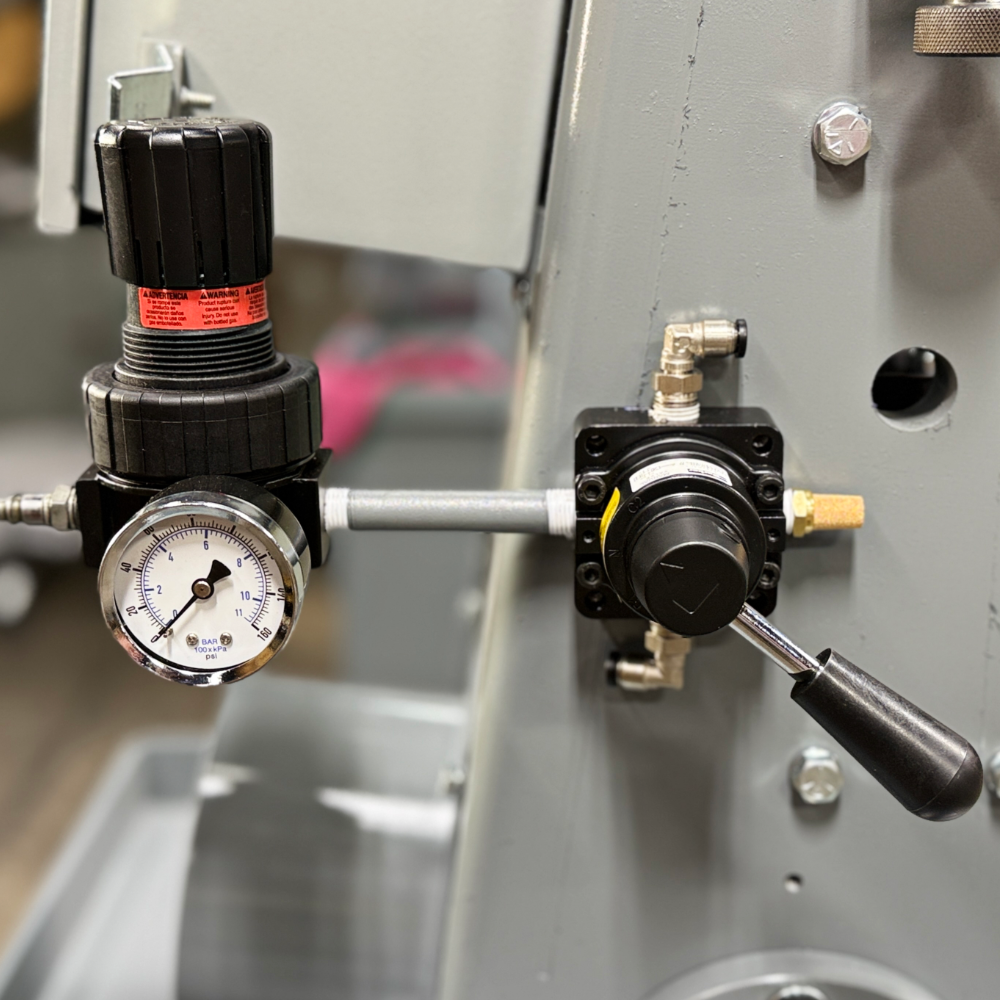

  • Magnetic switch w/jog button, air belt tension 40-50 psi reqd.

  • 1725 RPM 3500 SFPM

  • 8″x60″ belt, replaceable platen, work area 8″ x13″

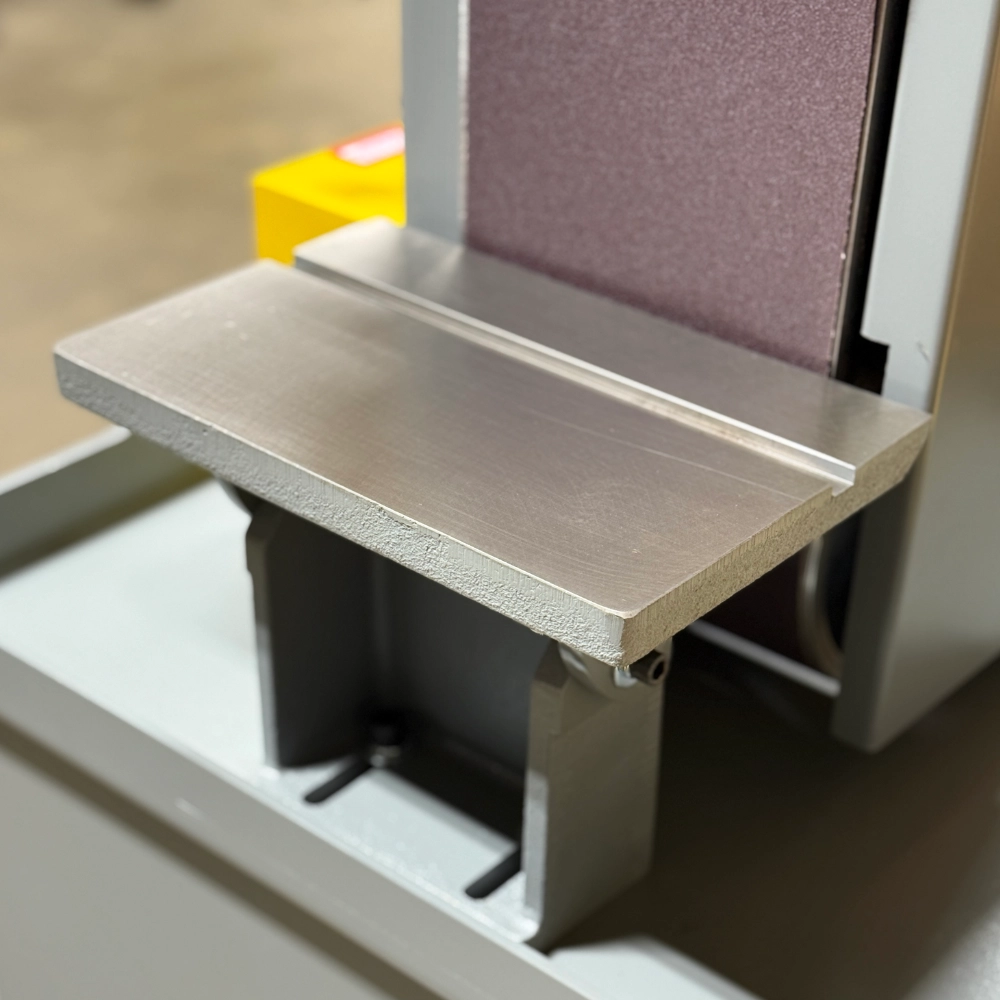

  • 8″x12″ cast iron table, adjustable angle, 5/8″ slot for mitre gage.

  • 24 volt@ pushbutton. 220/440 3 phase, also available in 575 volt, 50 hz, CE rating

  • Also available WET

  • Dimensions: L25″xW25″xH62″

  • 8″ x 60″ dry unit shipping weight is approximately 675 lbs.

  • Shipping dimensions: L 38″ x W 38″ x H 74″

  • Amp draws: 208V 22 amps, 220V 20.2 amps and 440V 10.1 amps

  • Option: variable speed drive.

S8D 8 x 60 inch vertical dry belt sander parts are replaceable no matter the age of the unit.

This product has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
